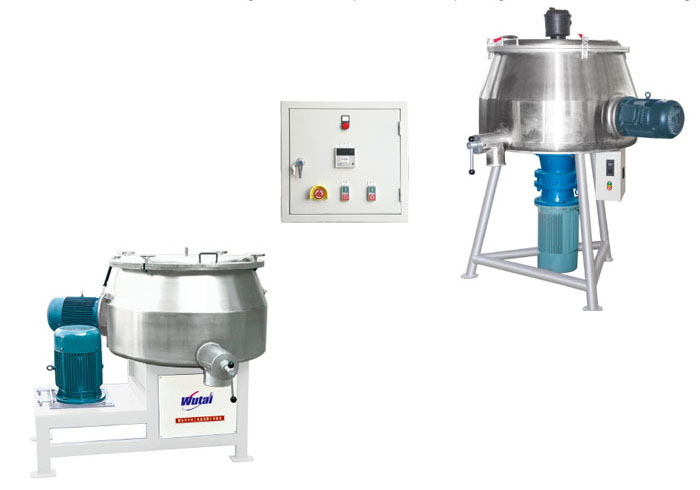

HG系列高速混料機
HG系列高速混料機適用于對多組粒狀或塊狀固體物料進行混合，在進行混合的同時對物料進行破碎。色料助劑分散優良，清機拆卸方便，采用先進密封設計，無粉塵泄露。
主要特點：
*易于清機，方便換顏色。
*高效破碎，混合均勻。
*時間預置準確，定時自動控制。
*出料方便，高產出量。
*加裝安全保護及電機過載保護等， 操作安全。
HG series horizontal high speed pre-mixer
This machine is suitable for mixing solid coarse and lumpish multi-component material. The material will be crushed during mixing. Pigment and chemical auxiliary disperse homogeneously, can be dismounted easily. there is no powder leakage because of superior sealing.
Main Features:
*Easy cleaning , convenient for color change
*Mixing homogeneously and efficiently crushing
*Adjustable mixing time preset and controlled accurately
*Easy discharging, high output
*There is over loading and safety protection for motors, Operation safety
型號及規格Specification
|
型號Model |
產量/罐Output/tank(kg) |
混合電機Mixing motor(kw) |
破碎電機Crushing motor (kw) |
混合時間Mixing time (Min/container) |
外形尺寸Dimension (L*W*H m) |
|
HG-100 |
80 |
5.5 |
4 |
4-6 |
Ø 0.7*1.3*1.38 |
|
HG-150 |
150 |
7.5 |
4 |
4-6 |
Ø 1.2*1.6*1.6 |
|
HG-300 |
300 |
15 |
5.5 |
4-6 |
Ø 1.3*1.5*1.8 |
|
HG-500 |
500 |
18.5 |
7.5 |
4-6 |
Ø 1.6*1.6*1.9 |
|
HG-600 |
600 |
22 |
7.5 |
4-6 |
Ø 1.6*1.6*1.9 |
|
HG-800 |
650-800 |
30 |
7.5/2 |
4-6 |
Ø 1.9*1.9*2.0 |
|
HG-1000 |
900-1000 |
45 |
7.5/2 |
4-6 |
Ø 2.0*2.2*2.5 |
|
